8 inch Face Recognition Device Body Temperature measurement Thermal Camera visitor management system
Model: AD-08A
More Features:
*8-inch IPS full view LCD display.
*Industrial appearance, dustproof design,Stable and reliable.
*CPU:RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 *RAM :2GB , Internal memory :16GB
*Operation system : Android 8.1
*Resolution : 800*1280
*WiFi : 802.11b/g/n 2.4G
*Buletooth : Bluetooth 4.1
*USB : OTG data
*RJ-45 : 10M/100MEthernet
*Power adapter : DC adapter 12V/2A
*Living human body detection : 100% identification of real person, Avoid photos or videos
*Recognition distance: 30~50cm
*Dual light multi lattice thermal imaging:accurate recognition temperature warning with data stored in cloud server *White fill light : White board uniform light supplement
*Status indicator : Two color LED function indicator
*MIC : front built-in microphone
*wide dynamic of binocular living : 200W 1080P Front camera
*OSD : Multilingual OSD in English/German/Italian/Japanese/Korean ect.
Products Description & Product Paramenters
| System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 8.1 |
| Display | Panel | 8" |
| Resolution | 800*1280 |
| Contrast ratio | 1000:1 |
| Brightness | 350cd/㎡ |
| Aspect Ratio | 16:10:00 |
| Network | WiFi | 802.11b/g/n 2.4G |
| Buletooth | Bluetooth 4.1 |
| Interface | OTG | mini_USB_OTG *1 |
| | USB host | USB host*1 |
| | RJ-45 | 10M/100MEthernet |
| | Power adapter | DC adapter |
| Software | Optimum detection distance | 45 cm to 55 cm |
| | dual light multi lattice infrared thermal imaging | accurate recognition temperature warning with data stored in cloud server |
| Other functions | Wireless mouse | Support |
| Human body detection module | Infrared detection |
| Status indicator | Tri-color LED function indicator |
| High precision infrared thermal imaging detection | High precision infrared thermal imaging detection |
| SPK | 2*2W |
| SPK | 200W 1080P Front camera |
| OSD | Multilingual OSD in English/German/Italian/Japanese/Korean |
| working humidity | 20%～95% Non condensing |
| Operating ambient temperature | 0℃～+35℃ |
| Overall power consumption | below 18W |
| Protection level | IP54 |
| ESD | Positive and negative 4K contact discharge/8Kv air discharge |
| surge | Support |
| harmonic | Support |
| other | Adapter | 12V/2A |

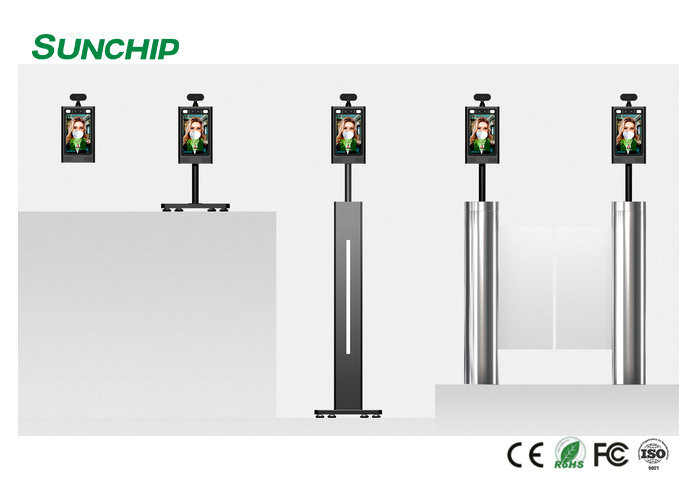

| Installation and fixation | The standard stand is 1.1 meters high (Optional) |
| VESA 50*50mm |
| | |
1.Packing: carton box or wood case 2.Payment methods: accept T/T,Paypal.
3.RMA Policy: customer bear allthe freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
